Weather-proof outdoor distribution for street, campus and industrial power networks.

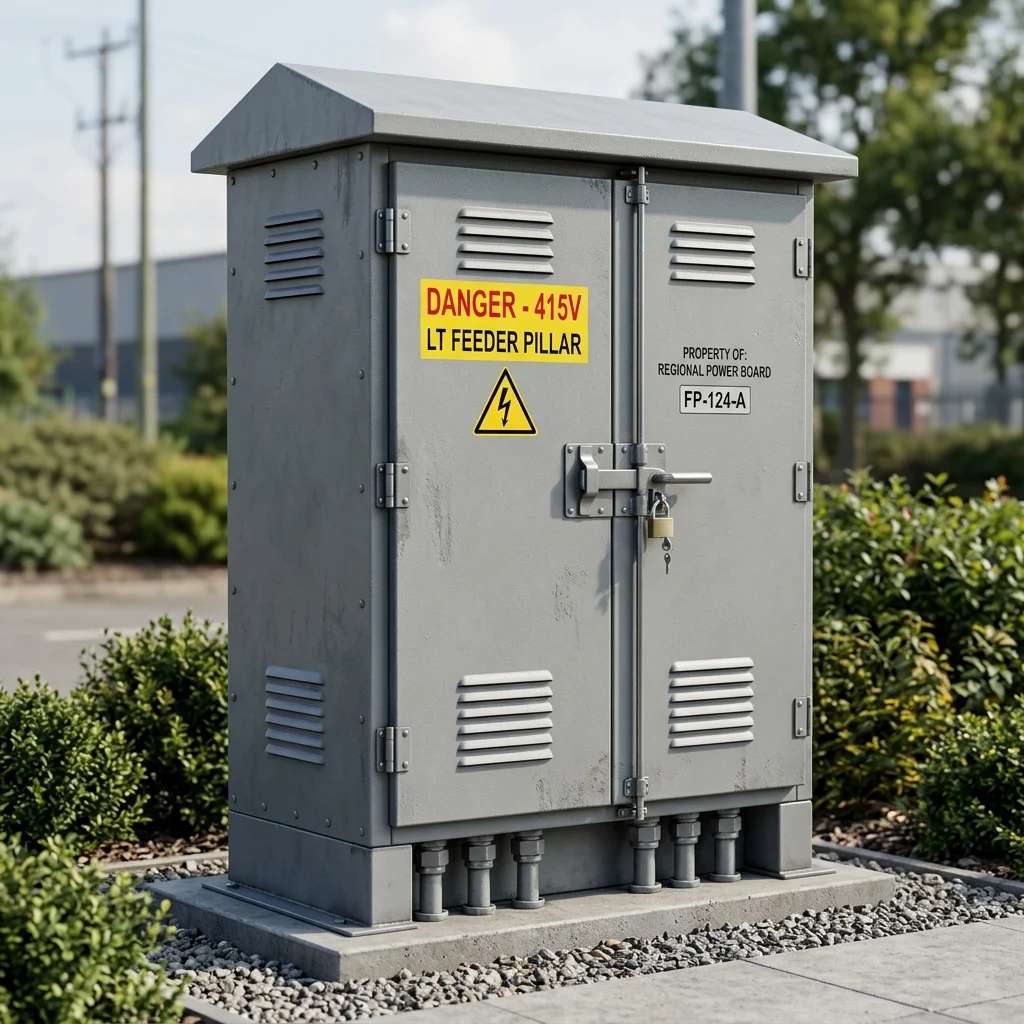

Our LT Feeder Pillars are built for permanent outdoor duty. The enclosure is fabricated from 2.0 or 3.15 mm CRCA sheet, passed through the 7-tank pre-treatment line and powder coated for corrosion resistance, then fitted with PU gaskets and rain-proof canopies. Cable entry is from the bottom through a gland plate, and the unit is supplied for floor or plinth mounting.
A feeder pillar takes a single incoming low-tension supply and divides it into several protected outgoing circuits at a point remote from the main panel room. It is rated up to 1000 A with IP55 or IP65 ingress protection, and incomers may be ACB, MCCB, switch-fuse unit or changeover type, with outgoing ways in ACB, MCCB, SFU, changeover or MCB configuration. The assembly is built to IS 8623 and is used for street lighting networks, township distribution, pump houses and site power hubs.
Straight answers to common questions about the LT Feeder Pillar.
An LT feeder pillar takes a single incoming low tension supply and distributes it to several outgoing feeders for street, campus and industrial power networks. It is built for permanent outdoor duty.
The standard enclosure is IP55 outdoor type, and IP65 is also available. PU gaskets and rain proof canopies keep water out, and cable entry is from the bottom through a gland plate.
Both resist water jets. IP65 is dust tight, while IP55 is dust protected, which allows limited dust ingress that must not affect operation. A fully sealed pillar holds heat, so the higher rating is not automatically better, and the choice should follow the site conditions.
The enclosure is fabricated from 2.0 or 3.15 mm CRCA sheet, passed through the 7-tank pre-treatment line and powder coated. An IP rating says nothing about corrosion, so tell us if the site is coastal or chemical.
Rated current is up to 1000 A, with MCCB, SFU, changeover or ACB incomers and ACB, MCCB, SFU, changeover or MCB outgoing devices.
Send the incoming rating, the number and rating of outgoing feeders, floor or plinth mounting, the IP rating you want and the site environment.
